Description
Brand: Anritsu;
Model: MT8852B;
Origin: Japan;

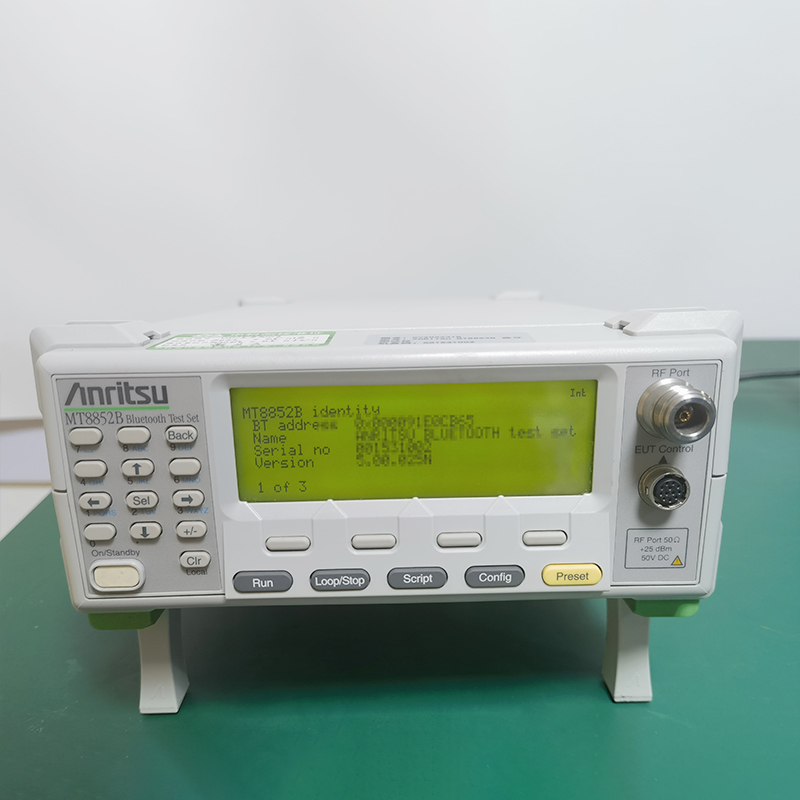

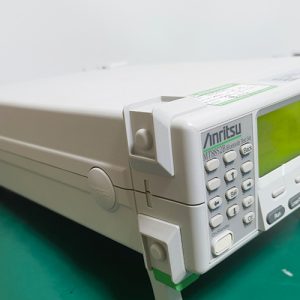

Anritsu MT8852B Bluetooth Tester
Bluetooth Test Device
MT8852B
Perform tests in accordance with Bluetooth RF test specifications
Complies with Bluetooth core specifications v1.2, 2.0, 2.1, 3.0+HS, 4.0, 4.1 and 4.2
Qualified by Bluetooth SIG to perform RF measurements
Supports 8 basic rates and 6 EDR test cases
Supports 6 Bluetooth low energy test cases
Single script performs basic rate, EDR and Bluetooth low energy tests
Audio test function. Three SCO channels and air interface with μ-law, A-law and CVSD speech coding methods.
BlueSuite Pro3 software provides graphical traces for modulation, power ramp, single channel measurement and receiver sensitivity search
Adaptive frequency hopping (AFH) test function for Bluetooth devices
The Bluetooth test set MT8852B is a market-leading RF test instrument, mainly used for design verification and production testing of various products integrating Bluetooth technology. It supports the transmission power, frequency, modulation and receiver sensitivity required by the Bluetooth Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth Low Energy (BLE) RF test specifications.
In production, a simple button action starts a test script, which can complete the test of a device in less than 10 seconds.
Tests performed in accordance with the Bluetooth RF test specification
Bluetooth test mode – measurements done in loopback or transmit mode
Initialize and control the test equipment via UART, USB or USB-Adaptor HCI control interface
Built-in support for Bluetooth low energy twisted pair control interface
BR/EDR/Bluetooth low energy disturbing transmitter for receiver sensitivity test cases
Bluetooth low energy testing
With the Bluetooth low energy option and the BLE data length extension option, the MT8852B can perform radio layer tests that are fully compliant with the newly introduced Bluetooth v4.2 standard. Extending the length of the data packet from 37 bytes to 255 bytes in Bluetooth low energy increases the effective throughput of the system.
The Bluetooth low energy option thus adds 6 Bluetooth low energy test cases to the standard product.
These test scenarios can be run separately as part of a test script, which simplifies the creation of test plans and minimizes the time required for testing.
Audio Test Function

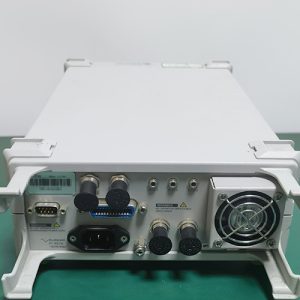

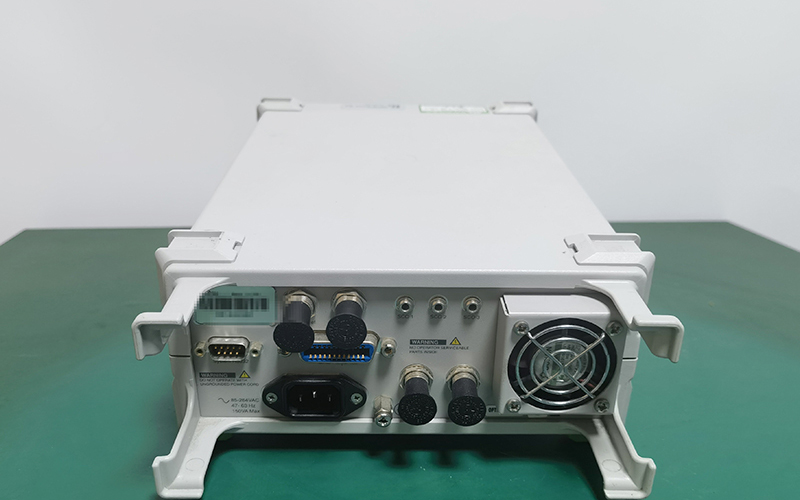

MT8852B supports all three coding interfaces (μ-law, A-law and CVSD) and up to three SCO channels. This instrument integrates multiple test equipment into a Bluetooth wireless technology tester to provide the most comprehensive test. The plug jack on the rear panel provides analog input and output for all three audio channels.
Adaptive Frequency Hopping Detection Function
The adaptive frequency hopping option can analyze coexisting mutual interference signals from WLAN, etc. When interference is introduced, this option can provide a graphical display of FER and mask channels to optimize hardware design.
